Windows Vista System Restore Guide

  • February 23, 2007
  • 03:14 PM
  • Read 853,575 times


Table of Contents

Introduction to System Restore

System Restore is a system recovery feature of Windows that creates snapshots, or restore points, of the state of your computer at various intervals or before you perform a certain task. These restore points can then be used to restore your computer back to the state it was in when they were taken. When these restore points are created, and restored, the only files affected are the Windows Registry, programs, and system files. Your data such as spreadsheets, documents, images, and music remain untouched between restores.

You may be wondering why you would want to restore your computer to a previous point. The reason being that there comes a time in every computer user's life that they install a new program, install a new driver, or just turn on the computer and find it no longer works as it did the day before. You have no idea why, can't resolve the problems, and are left with two options. You can either backup your data, reinstall the operating system, and then reinstall all your applications or you can restore your computer to a previous snapshot in the hopes that the problems will now be gone. By using System Restore to restore your computer to a previously known working state you can save considerable time or money compared to reinstalling the entire computer.

System Restore points are automatically created when the following actions occur:

  • When you install a new application or driver.

  • When you uninstall or install certain programs.

  • When you install new updates

  • Automatically on a daily interval

  • By manually creating one.

  • If you choose to use system restore to restore to a previous restore point, system restore will create a new restore point prior to restoring a previous state in case something goes wrong. If you restore to a previous state in Safe Mode, a restore point will not be created for the current state.

In order for System Restore to work you must have 300 MB of free space for each hard disk that System Restore is monitoring. System Restore will also use up to 15% of the disk space on each disk that it monitors. As hard drive space runs out, older restore points will be deleted as newer ones are created. It is also important to point out that you must be logged in as an Administrator in order to use System Restore. Now that you understand the basics of System Restore, you should continue to the next section to learn how to use it.


Restoring Windows Vista to a previous State

In the case of a problem on your computer that cannot be solved by normal means, you can restore your computer back to a previous working state. To do this you need to start System Restore so that you can choose the restore point to restore. If you are currently having problems starting Windows Vista, you can use System Restore from the Windows Recovery Environment. Instructions on how to do this can be found in this tutorial: Using System Restore from the Vista Windows Recovery Environment.

If you can log into Windows Vista, then you should follow these steps.

  1. Close and save any documents that you may have open.


  2. Click on the Start button to open your Start Menu. The Start button looks like this: Vista Start Button

  3. When the Start Menu opens click on the All Programs menu option.

  4. Click once on the Accessories Start Menu group.

  5. Click once on the System Tools Start Menu group.

  6. Click once on the System Restore icon. After you click on the icon, if a User Account Control window opens you should click on the Continue button.

You will now be at the System Restore screen as shown below in Figure 1. From this screen you can specify the restore point that you would like to restore.



System Restore Screen
Figure 1. System Restore Screen



By default, Vista will already have selected the Recommended restore option. This restore point is one was made after a new program, driver, or update was installed. If you would like to use this restore point, you can click on the Next button to start the restore process. On the other hand, if there is a more recent restore point that you would like to restore you should select Choose a different restore point and press the Next button. This will bring you to a screen, as shown in Figure 2, that contains a listing of all the available restore points that you can restore to.




Figure 2. List of available restore points



You should select the restore point that you would like to restore and press the Next button to start the restore process. Vista will display a Window showing your selected restore point and asking you to confirm that this is the one you would like to restore.



Confirm the selected restore point
Figure 3. Confirm the selected restore point



If you would like to select a different restore point press the Back button. Otherwise you can press the Cancel button to exit System Restore or the Finish button to begin the restore process. If you selected Finish, Vista will display a second prompt asking you to confirm that you would like to continue the restore.



Second Confirmation
Figure 4. Second Confirmation



If you are sure you want to do the restore, then press the Yes button. Vista will now log you off of the computer and start the System Restore process as shown in Figure 5 below.



Restoring a restore point
Figure 5. Restoring a restore point



When the restore has been completed, you computer will be restarted and when Vista boots back up it will be restored to its previous state. When you log in to Vista for the first time after the restore, you will see a message showing that the restore was successful.




Figure 6. System restore was successful



If there are any problems with your computer due to the last restore, you can revert back to your previous settings by going back into the System Restore Utility and selecting the Undo System Restore option and pressing the Next button.



Undo the last System Restore
Figure 7. Undo the last System Restore



Your computer should now be working properly again.


Using System Restore from the Windows Recovery Environment


Manually Creating Restore Points

As said previously, it is also possible to create manual restore points as needed. Popular reasons to create manual restore points are when you have your computer set up perfectly and would like to save the state in the case of problems in the future. To create a manual restore point you need to follow these steps:

  1. Click on the Start button to open your Start Menu. The Start button looks like this: Vista Start Button

  2. Click on the Control Panel menu option.

  3. Click on the System and Maintenance menu option.

  4. Click on the System menu option.

  5. Click on System Protection in the left-hand task list.

You will now be at the System Protection tab in the System control panel. This tab allows you to enable and disable System Restore as well as make new manual restore points.





System Protection Tab
Figure 8. System Protection tab



To create the manual restore point you should click on the Create button. When you press this button a prompt will appear asking you to provide a title for this manual restore point.



Enter title for manual restore point
Figure 9. Enter title for manual restore point



Type in a title for the manual restore point and press the Create button. Vista will now create a manual restore point, and when completed, display a notice saying that it was created successfully.



Manual restore point was created
Figure 10. Manual restore point was created



Now that you have completed making the manual restore point you can close the System window.


Disabling System Restore

It is advised that you do not turn off System Restore unless you have specific need to do so.

WARNING: By disabling system restore you will delete all stored restore points and shadow copies of documents on your computer.

To disable System Restore you would follow these steps:

  1. Click on the Start button to open your Start Menu. The Start button looks like this: Vista Start Button

  2. Click on the Control Panel menu option.

  3. Click on the System and Maintenance menu option.

  4. Click on the System menu option.

  5. Click on System Protection in the left-hand task list.

  6. Uncheck the checkboxes next to each hard drive listed under the Create restore points automatically on the selected disks: section. When you uncheck a disk you will be presented with the following screen.

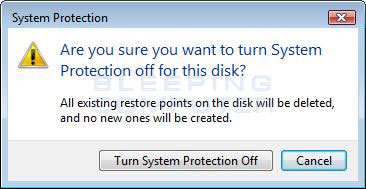

    Turn off System Restore confirmation
    Figure 11. Turn off System Restore confirmation


    You should click on the Turn System Protection Off button.

  7. Press the Apply button and then the OK button.

System Restore is now disabled on your computer.

Enabling System Restore

By default System Restore is enabled on Windows Vista computers so you will only need to enable it if you have previously disabled it. To enable System Restore do the following:

  1. Click on the Start button to open your Start Menu. The Start button looks like this: Vista Start Button

  2. Click on the Control Panel menu option.


  3. Click on the System and Maintenance menu option.


  4. Click on the System menu option.


  5. Click on System Protection in the left-hand task list.


  6. Put a checkmark in the checkboxes next to each hard drive listed under the Create restore points automatically on the selected disks: section.

  7. Press the Apply button and then the OK button.

System Restore is now enabled on your computer.



Deleting Restore Points

There are two safe ways to delete restore points stored on your computer. These ways are described below:

Turn off System Restore - When you turn off System Restore, all previously created restore points will be deleted.

System Restore runs out of storage space - If System Restore runs out of allocated space it will delete the older restore point in order to create free space in which to create the new restore point.


System Restore and Shadow Copy

If you are the owner Windows Vista Business, Ultimate, or Enterprise then you also have a feature called Shadow Copy available to you. Shadow Copy is a feature integrated into System Restore that makes copies of your documents when a restore point is created. You can then use these shadow copies to restore these files at a later date if they have been accidentally deleted or altered in some way. Since Shadow Copy is integrated into System Restore, if System Restore is disabled you will not be able to use Shadow Copy.

To use Shadow Copy to restore a particular file to a previous state you would right-click on the file and select the Restore previous versions option as shown in Figure 8 below.



Restore previous versions
Figure 12. Restore Previous Versions



This will bring up a new screen showing the previous versions of the file that are available to restore as shown in Figure 9 below.



List of previous versions
Figure 13. List of previous versions



When you select a version from the list you have three options.

  • You can open the previous version by clicking on the Open button. This allows you to view the contents of the file without overwriting your existing one.

  • If you would like to copy the older version to a new location you can click on the Copy button.

  • If you would like to restore the previous version, and overwrite the existing one, you can click on the Restore button.

The interesting this about this feature is it does not work only on files. You can also use this feature to restore folders, and all of its contents, that were deleted. To restore a previous version of a folder you would do the following.

  1. When in the folder that you would like to restore click on the Organize button and then select Properties.

  2. Click on the Previous Versions tab.

  3. Select the date of the Shadow Copy you would like to restore and then select the Open, Copy, or Restore options as required.

When restoring folders, if you only wish to restore a particular file in the folder Shadow Copy, you should select the Open option to open the Shadow Copy folder and then copy the particular Shadow Copy files out of it that you need. As you can see Shadow Copy is a powerful way to keep your data safe and to have backups available in the case of accidental deletions or irreversible changes.


Conclusion

The System Restore tool is a powerful feature that can be used to keep your computer operating properly. Now when you run into a problem that cannot be resolved normally, you can use System Restore to restore your computer to a previous known working state. Even more powerful is the ability to use system restore from the Windows Recovery Environment when you can't properly boot up into Windows. This allows you a second chance to get your computer operating as it should without having to do a time consuming and possibly expensive reinstall.

More information about Vista System Restore can be found here: http://bertk.mvps.org/html/vista.html

As always if you have any comments, questions or suggestions about this tutorial please do not hesitate to tell us in the Windows Vista Help Forums.
